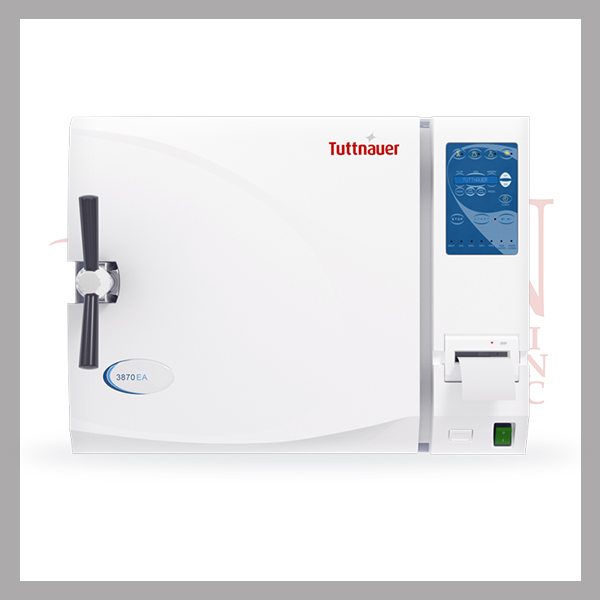

Tuttnauer 3870EA Large Capacity Automatic Sterilizer

Perfect for multi-practitioner practices, clinics or surgery centers.
The capacity to meet the most demanding offices, The 3870EA accommodates longer instruments or a large number of small instruments.

Rapid cycles optimize the availability of ready-to-use sterile instruments. 3 Pre-set sterilization programs. Standard unwrapped cycle Hot start: 23 min, Cold Start 32 min. Cycle times are approximate and may vary depending on instrument loads. Program and customize cycle parameters to suit your needs and maximize flexibility.

Increase Productivity - Easy-to-use, single touch control system increases productivity and rapid cycles optimize the availability of ready-to-use sterile instruments.
Agile, Flexible Operation - Three pre-set sterilization programs. Program and customize cycle parameters, insufficient water detector with automatic shut-off.
Convenient - Supplied with a 3 shelf stand for easy storage.
Maintains Sterility - Closed door active drying system to maintain sterility and ensure efficient drying of packs and pouches. Cycle information recovery in case of power failure or cycle interruption. Hepa filter 0.2 µm air filter (replaceable).

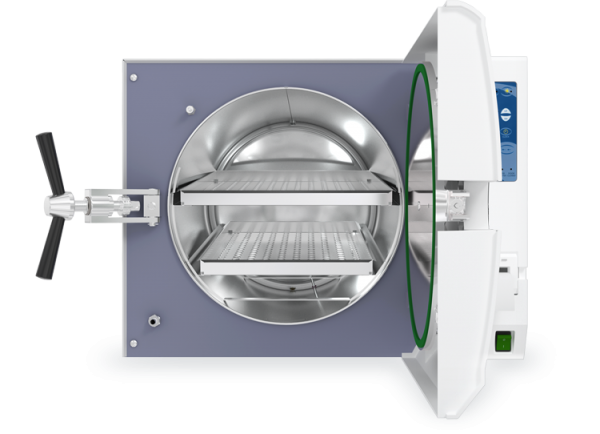

Durable Chamber - The long-life electro-polished chamber and door are made to last.
Superior Monitoring - Interdependent temperature and pressure monitoring.

Technical specifications
Overall Dimensions (DxWxH)
34.5” x 26” x 20.6”
875mm x 665mm x 525mm
Chamber Volume
85 Liter
22 Gallon
Chamber Dimensions
15” x 30”
385mm x760mm
Tray Capacity
Supplied with a 3 shelf stand
30”Wx36”Dx34”H
Tray Dimensions
26.6” x 11.3" x 1” (675mm x 286mm x 25mm)
26.6” x 13.8" x 1” (675mm x 351mm x 25mm)
Voltage & Frequency
230V
50-60Hz
Power & Current
3000W
13.6A
Autoclave Weight
278 lbs. (includes stand)
97 kg.
Warranty
2 years parts and labor
